About this item

Heavy Duty: ABS plastic housing, durable made for safety use, rear cover insulates terminals against any short of circuits. Design for 2 batteries vehicles, can switch battery 1 / battery 2 separately or both on and off.

Purpose: eliminate any power from the battery when vehicle or boat is not in use, disconnects the battery safely. Avoid battery drain off.

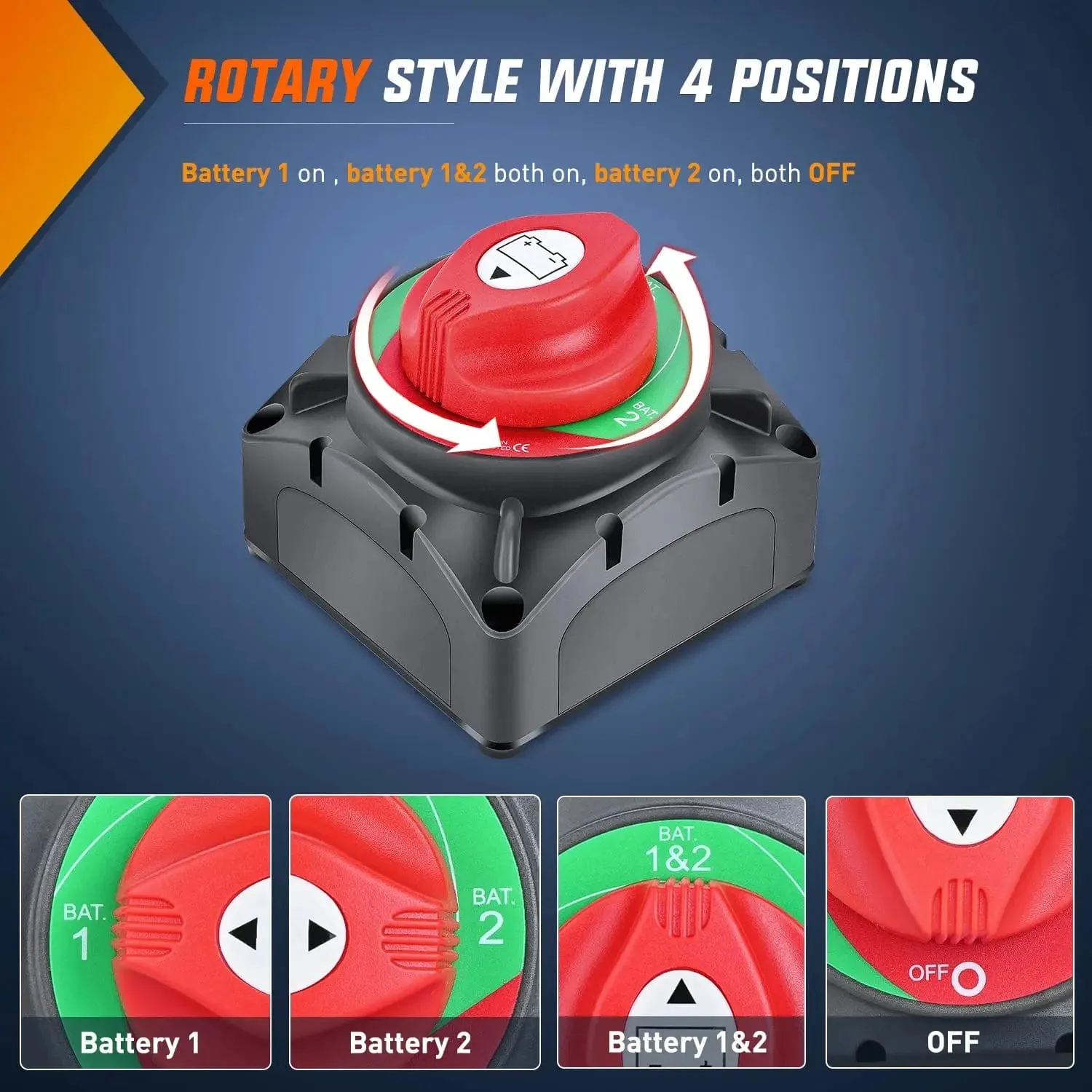

Operation: 1-2-Both-Off, 4 positions, 200A continuous at 12VDC, 300A intermittent at 12VDC, 1000A momentary at 12VDC.

Compatible: used for 12 - 48VDC systems to isolate and secure the electrical system, can stand alone or be locked together with other switch. Widely used for cars, marine boats, RVs, campers, travel trailers, trucks, ATVs, UTVs, battery banks and other devices.

Design for 2 batteries, can switch to battery 1 / battery 2 separately or both on and off together. Eliminate any power from the battery when vehicle or boat is not in use, disconnect the battery safely. Avoid battery drain off.

Features

Well Built Heavy Duty Cut-Off Switch

Panel-mounted switches are designed specifically for panel mount applications; Countersunk recesses for surface mount applications.

ABS plastic housing and on/off switch knob

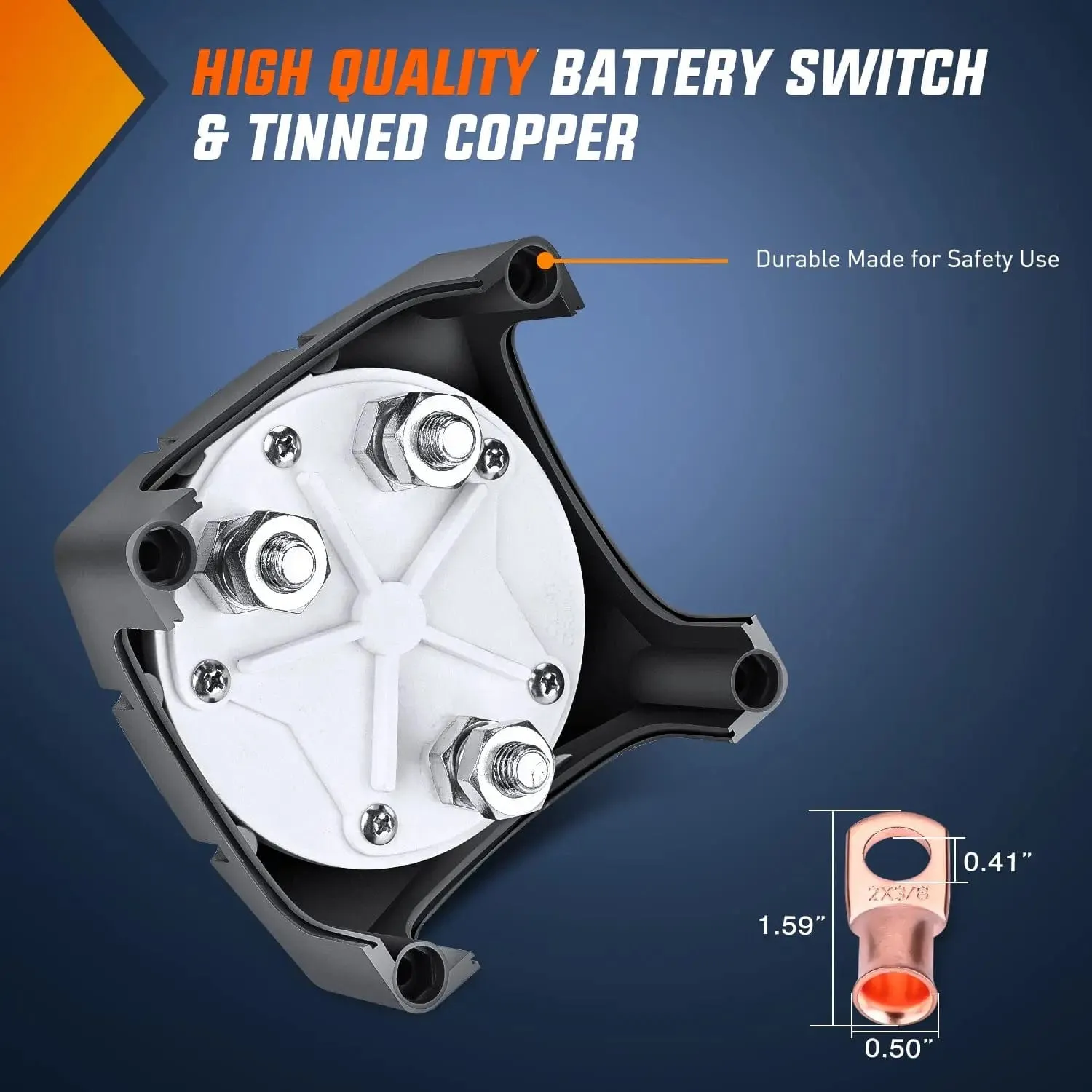

ABS plastic housing durably made for safety use, rear cover insulates terminals against any short circuit.

Used for 12 - 48VDC systems to isolate and secure the electrical system.

Can stand alone or be locked together with other switches.

Design for 2 batteries

This switch is designed for 2 batteries. Can switch to battery 1 / battery 2 separately or both on and off. Eliminate any power from the battery when vehicle or boat is not in use, disconnects the battery safely. Avoid battery drain off.

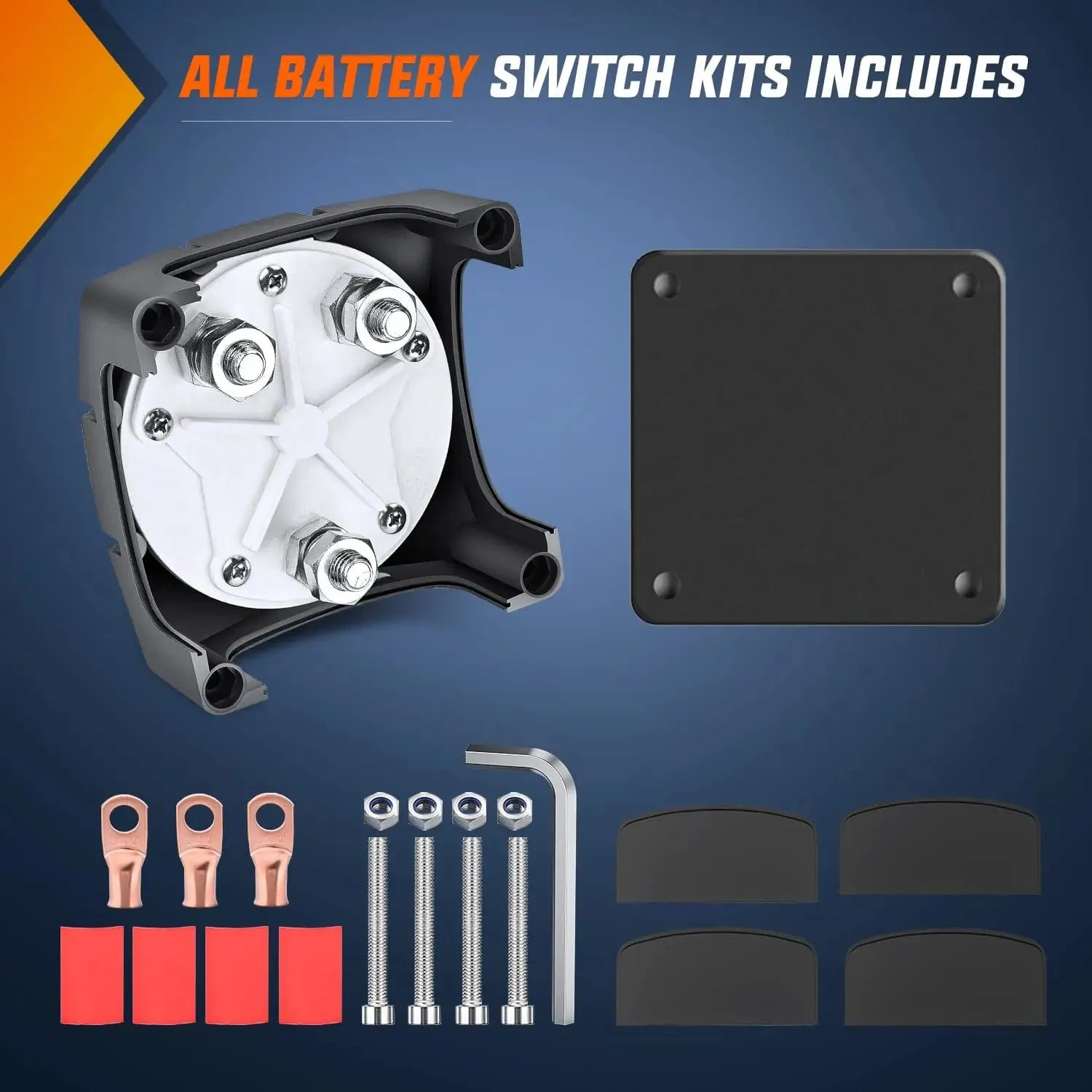

Brass Package Included: stud and nut

1 x Battery Switch
3 x Copper Ring Terminals
3 x Heat Shrink Tubings
1 x Hex wrench
4 x Side Pad
4 x Mounting Bolt
Backing Pad

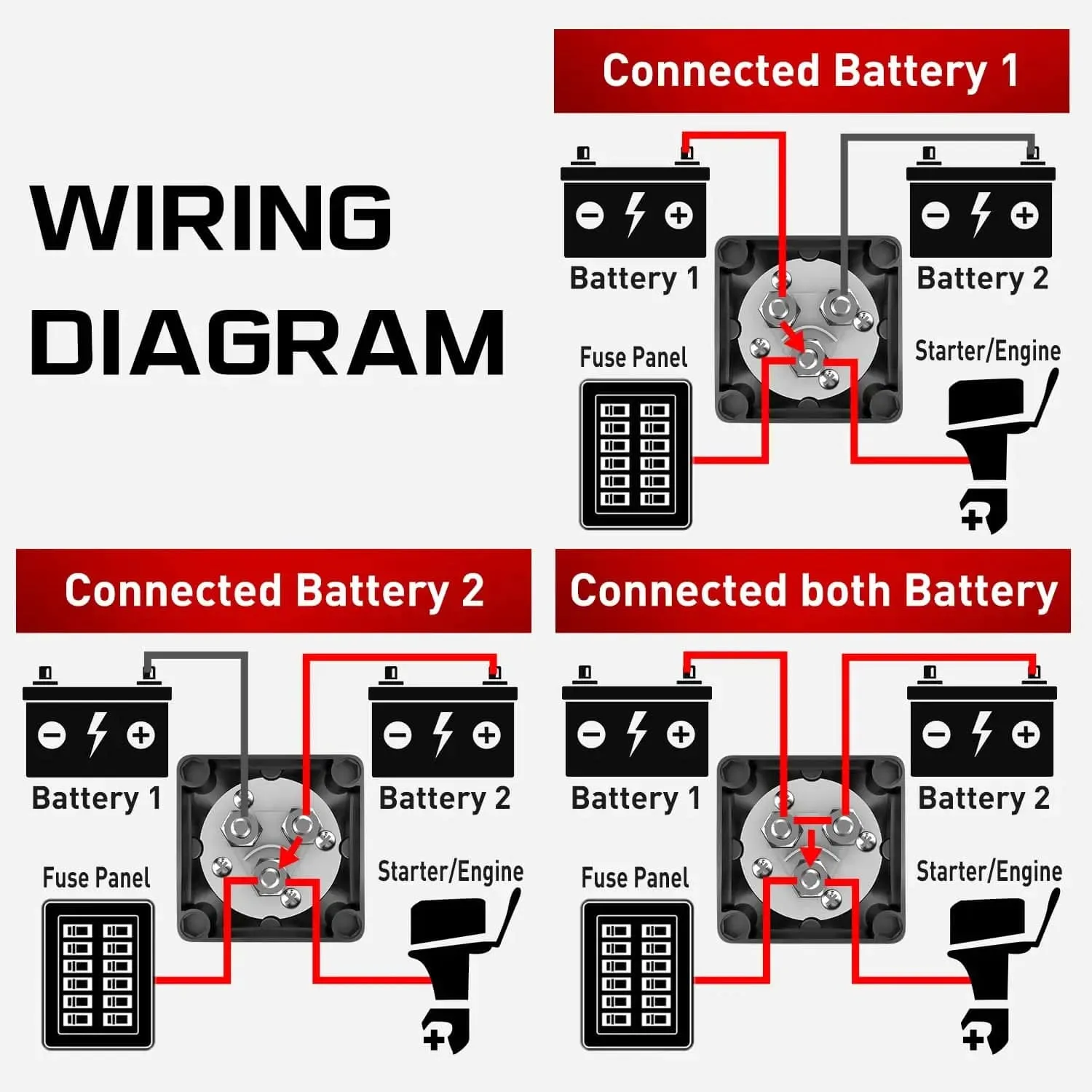

Wiring Options

Simple set up

The most normal way to set up the switch is to connect the master switch to the battery and electronic devices directly.

Simple Operation:

Switch on = Power on

Switch off = Power off

Single on-off switch

This battery switch can also be used as an on-off switch to control the accessory power, its function is just like others toggle switches or rockers switches.

Dual battery set up

The 2-position battery kill switch can be also connected to 2 batteries by following this wiring diagram. Please remember that it will control the battery power of the 2 batteries simultaneously, can not be controlled separetly.

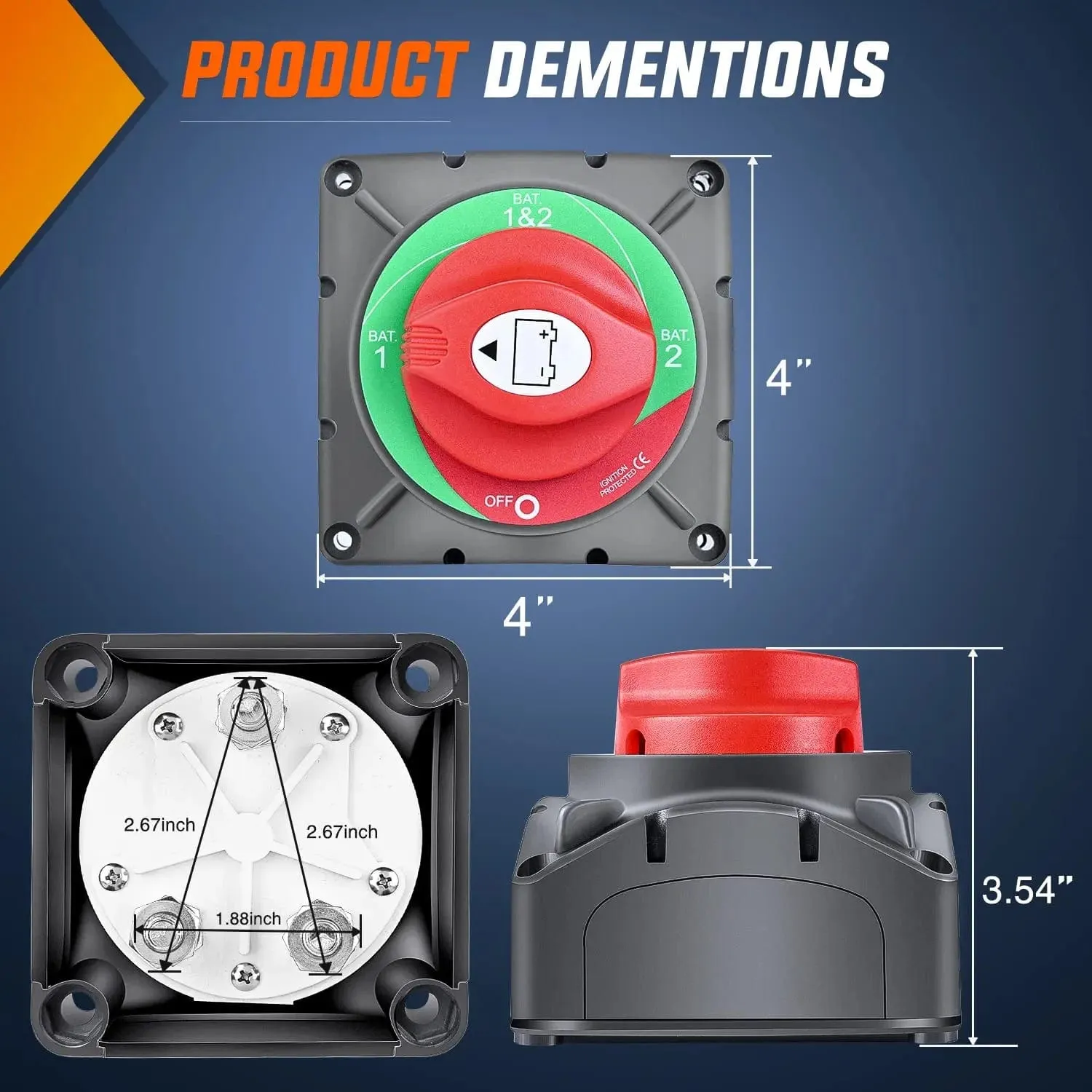

Product Specification
